BL 2430-LED-SMT-EAI

Category:

…designed for high-reliability fire safety and industrial signaling, the series offer robust solutions for critical visual alerts. These units are engineered to provide clear, immediate instructions whether for area evacuation or gas discharge warnings ensuring the highest standards of personnel safety in demanding environments.


DOWNLOAD PDF

$55.00

Input Voltage
24Vdc ± 20%
Input Current
< 0.08A
Lamp Used
2 x SMT White LED or others
Operation Temperature
ta 40 °C
Power Consumption
< 2W
Construction
Electrode galvanised sheet steel with epoxy powder coating 20mm Ø K/O hole
Dimension
370mm(L) x 80mm(W) x 165mm(H)
Weight
1.80kg (Net) / 2.00kg (Gross)
Packing
One unit per carton
Carton / Dimension
Double wall corrugated / 390mm(L) x 100mm(W) x 180mm(H)

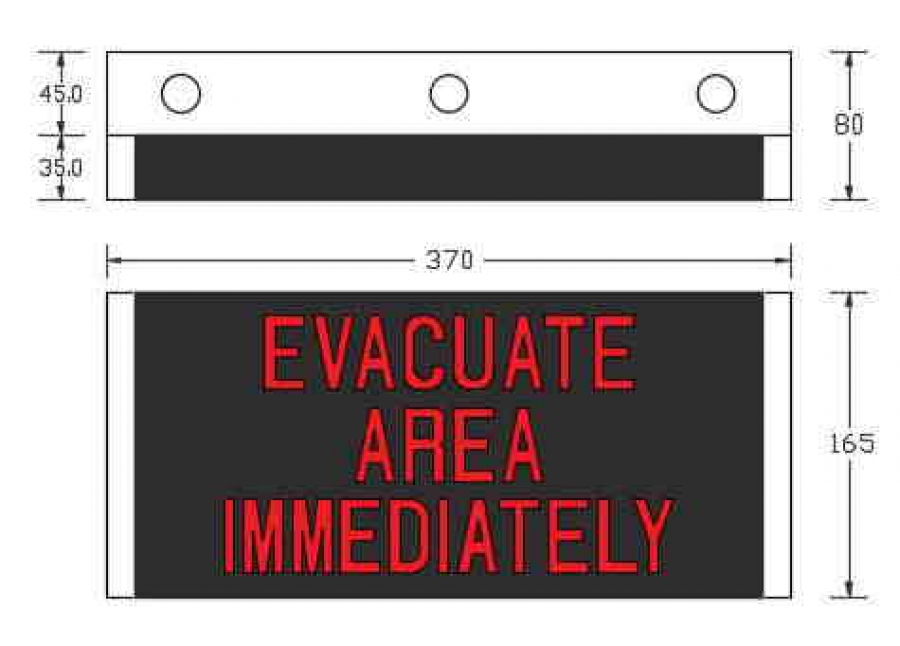

Dimensions
