…is designed with low EMI and specially equipped with a customized proprietary Hybrid IC for higher reliability and greater efficiency in operation. Small and aesthetically in design. Easy installation. Snap-in and flush mount firmly onto ceiling/panel. It stays inconspicuously and maintains the original interior decoration of the premises.
Suitable for Banks, Computer Rooms, Offices, Cinemas, Hotels, Shops, Supermarkets, etc..
$38.00
230Vac 50/60Hz or 115Vac 50/60Hz or others
High temp rated Nickel Cadmium cells 2.4V 1.6Ah or others
4 × 0.25W SMT NICHIA White LED
> 4 hrs or others
Non-maintained
ta 40 °C
< 1.3W
Super bright Green LED 5mm Ø
16 ~ 24 hrs
27 lm
6.9m gauss @ 0.1m
Hybrid controlled charger
Low volt cut-off to prevent battery over discharge.
Incoming AC fuse, Circuit Protection Fuse and Battery DC fuse.
Tropical climate protection coating on a hybrid control circuit
Electrode galvanized sheet steel with epoxy powder coating

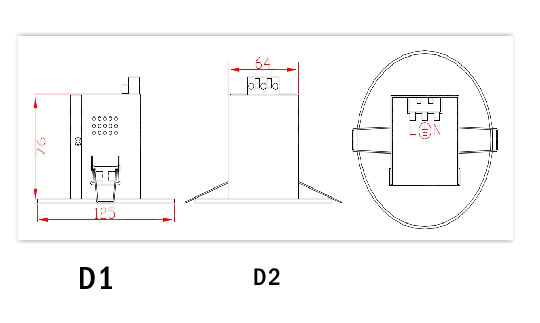

123mm (D1) × 64mm (D2) × 75mm (H)
0.50kg (Net) / 0.54kg (Gross)
One unit per carton
Double wall corrugated / 135mm (L) × 135mm (W) × 120mm (H)
SS563-1:2010, SS563-2-2010/A1:2013,
SSIEC60598-2-22:2016, SSIEC60598:PART 1:2016
1 Year
