… is designed with low EMI and specially equipped with a customized proprietary Hybrid IC for higher reliability and greater efficiency in operation.
Small and aesthetically in design. Easy installation. Snap-in and flush mount firmly onto ceiling/panel. It stays inconspicuously and maintains the original interior decoration of the premises.
Suitable for Banks, Computer Rooms, Offices, Cinemas, Hotels, Shops, Supermarkets, etc..
$50.00
230Vac 50/60Hz ± 10% or 115Vac 50/60Hz ± 10% or others
High temp rated Nickel Cadmium cells 2.4V 2.5Ah or others
1W SMT White LED or 3W Super Bright LED Module, Light Output 280 lm
> 3 hrs or others
Non-maintained
ta 40 °C
1.4W
Super bright Green LED 5mm Ø
16 ~ 24 hrs
27 lm
6.9m gauss @ 0.1m
Hybrid controlled charger
Low volt cut-off to prevent battery over discharge.
Incoming AC fuse, Circuit Protection Fuse and Battery DC fuse.
Tropical climate protection coating on hybrid control circuit
Electrode galvanised sheet steel with epoxy powder coating

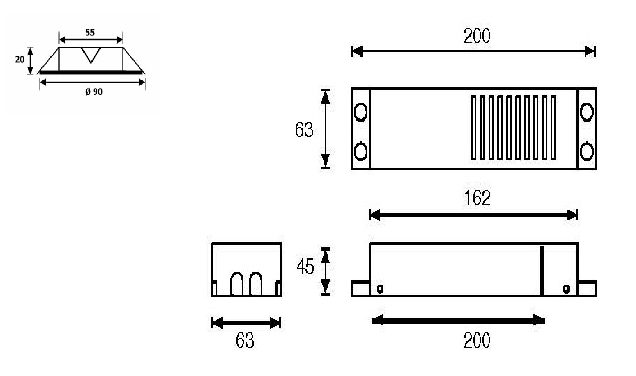

200mm (L) × 63mm (W) × 45mm (H)
One unit per carton
Double wall corrugated / 420mm (L) × 90mm (W) × 90mm (H)
SS563-1:2010, SS563-2-2010/A1:2013,
SSIEC60598-2-22:2016, SSIEC60598:PART 1:2016
1 Year
