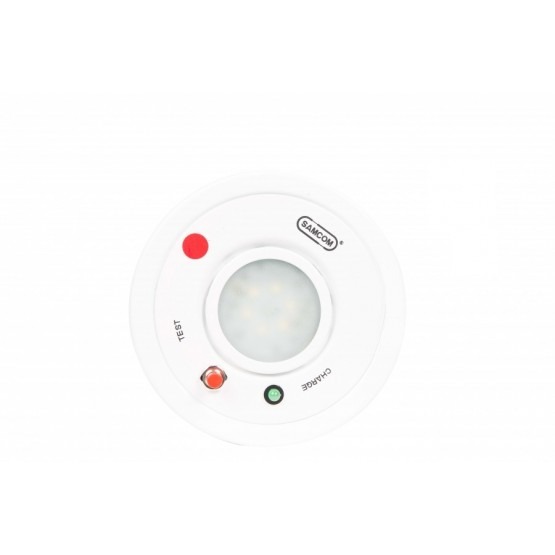

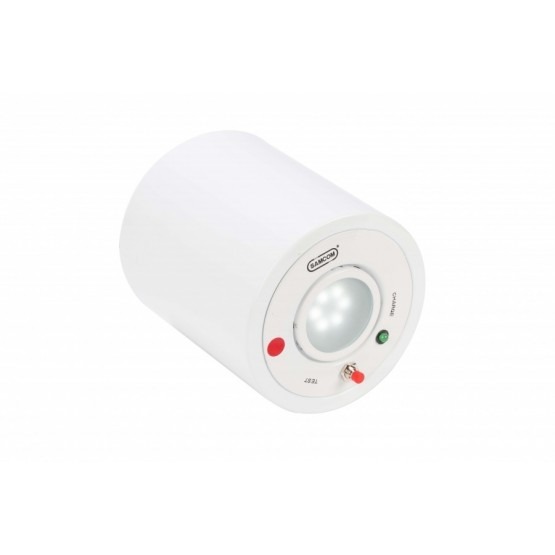

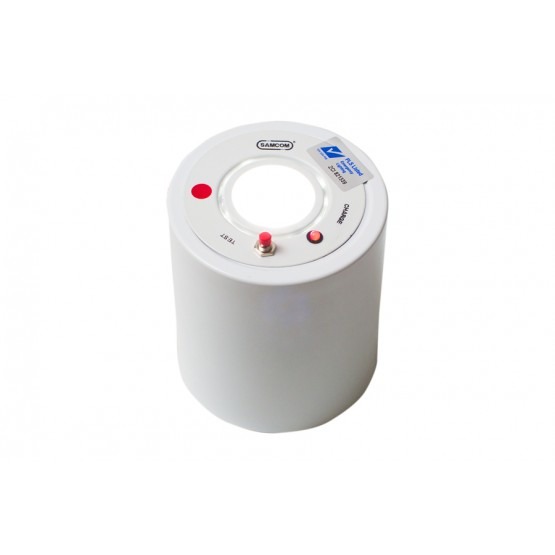

EHS 109-LED-CLD

…is designed with low EMI and specially equipped with a customized proprietary Hybrid IC for higher reliability and greater efficiency in operation. Small and aesthetically in design. Easy installation. It stays inconspicuously and maintains the original interior decoration of the premises.
Suitable for Banks, Computer Rooms, Offices, Cinemas, Hotels, Shops, Supermarkets, etc..

DOWNLOAD PDF

$60.00

Input Voltage

230Vac 50/60Hz ± 10% or 115Vac 50/60Hz ± 10% or others

Battery

High temp rated Nickel Cadmium cells 2.4V 2.5Ah

Lamp Used

1W SMT NICHIA White LED

Rated Period

> 3 hrs or others

Mode

Non-maintained

Operation Temperature

ta 40 °C

Power Consumption

< 1.4W

Charge/Fault Monitor

Super bright Green LED 5mm Ø

Recharge Period

16-24 hrs

Emergency Luminance

27 lm

Electromagnetic Field

6.9m gauss @ 0.1m

Charger

Hybrid controlled charger

Protection

Low volt cut-off to prevent battery over discharge. Incoming AC fuse, Circuit Protection Fuse and Battery DC fuse. Tropical climate protection coating on hybrid control circuit.

Construction

Electrode galvanised sheet steel with epoxy powder coating

Dimension

112mm Ø x 170mm (H)

Packing

One unit per carton

Carton Dimension

Double wall corrugated / 120mm (L) x 120mm (W) x 185mm (H)

Compliance

SS563-1:2010, SS563-2-2010/A1:2013, SSIEC60598-2-22-2016 SSIEC60598: PART 1:2016

Warranty

1 Year
