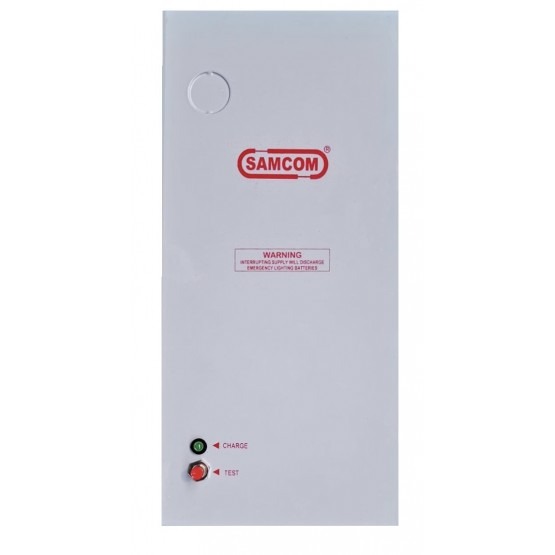

Hybrid IC Controlled Self-Contained Emergency Lighting
Fluorescent Luminaire
… is designed and specially equipped with a customized proprietary Hybrid IC and a very high-efficiency current feed push-pull sine wave inverter, to fully utilize the battery power and to prevent the frequent blackening of the tube. Compact and lightweight. Easy and fast installation with the thumb-press quick-lock fastening system cuts down installation/ maintenance time drastically.
Suitable for Factories, Schools, Sports Stadiums, Banks, Public Halls, Hospitals, Apartments, Warehouses, Carparks, etc..
$320.00
240Vac 50/60Hz ± 10% or 115Vac 50/60Hz ± 10% or others
6.0V 2.5AH/4.5AH High temp rated Nickel Cadmium cells or others
2 × T8 White LED
> 2 hrs, 3 hrs or others
Sustained
ta 40 °C
< 11W
Super bright green LED 5mm Ø
16 ~ 24 hrs
> 8 cd/m²
17m gauss @ 0.1m
Hybrid controlled charger
Low volt cut-off to prevent battery over discharge.
Incoming AC fuse and Battery DC fuse.
Tropical climate protection coating on hybrid control circuit
Electrode galvanised sheet steel with epoxy powder coating.
20mm Ø K/O hole, Fire Retardant Acrylic Opal diffuser.
655mm (L) × 125mm (W) × 255mm (H)
4.00kg (Net) / 4.10kg (Gross)
One unit per carton
Double wall corrugated / 665mm (L) × 135mm (W) × 265mm (H)
CP 19, SS263: Part2, IEC598-2-22, SS364
1 Year
