… is designed to be lightweight, low power consumption, low EMI and specially equipped with a customized proprietary Hybrid IC and super bright white LED and longer life-span. Easy and fast installation.
Suitable for general outdoor & indoor application.
$65.00
230Vac 50/60Hz ± 10% or 115Vac 50/60Hz ± 10% or others
2.4V 2.5AH / 4.5AH High temp rated Nickel Cadmium cells or others
1 × 2W T5 White LED Tube or Super Bright SMT White LED
2 hrs, 3 hrs or others
Maintained
ta 40 °C
< 4.6W
Super bright green LED 5mm Ø
16 ~ 24 hrs
> 8 cd/m²
17m gauss @ 0.1m
Hybrid controlled charger
Low volt cut-off to prevent battery over discharge.
Incoming AC fuse and Battery DC fuse.
Tropical climate protection coating on hybrid control circuit
Moulded Fire Retardant ABS housing with
20mm Ø K/O hole and Acrylic diffuser

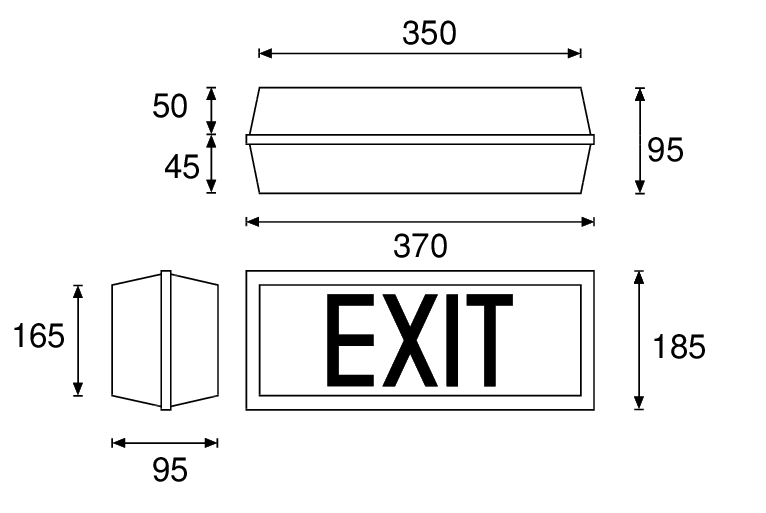

370mm (L) × 185mm (W) × 95mm (H)
1.50kg (Net) / 1.60kg (Gross)
One unit per carton
Double wall corrugated / 400mm (L) × 210mm (W) × 110mm (H)
SS563-1:2010, SS563-2-2010/A1:2013,
SSIEC60598-2-22:2016, SSIEC60598: PART 1:2016
1 Year
