ESS 108-LED

High-performance, self-contained emergency LED luminaire featuring a proprietary Hybrid IC control system and a high-efficiency current feed push-pull sine wave inverter. Designed to maximize battery utilization while providing bright, uniform illumination, it features a compact and lightweight housing. The thumb-press quick-lock fastening system ensures drastically reduced installation and maintenance time, making it an ideal safety solution for factories, offices, schools, and commercial buildings.

DOWNLOAD PDF

$55.00

Input Voltage

230Vac 50/60Hz ± 10% or 115Vac 50/60Hz ± 10% or others

Battery

High Temp Rated Nickel Cadmium Cells 2.5V 2.5AH or others

Lamp Used

1 x SMT White LED

Rated Period

> 3 hrs or others

Mode

Non-maintained

Operation Temperature

ta 40 °C

Charge Monitor

Super bright Green LED 5mm Ø

Recharge Period

16 ~ 24 hrs

Emergency Luminance

43 Lumen

Electromagnetic Field

7m gauss @ 0.1m

Charger

Hybrid controlled charger

Protection

Low volt cut-off to prevent battery over discharge. Incoming AC fuse and Battery DC fuse. Tropical climate protection coating on hybrid control circuit

Construction

Electrode galvanised sheet steel with epoxy powder coating, 20mm Ø K/O hole, Fire retardant ABS Lamp Head

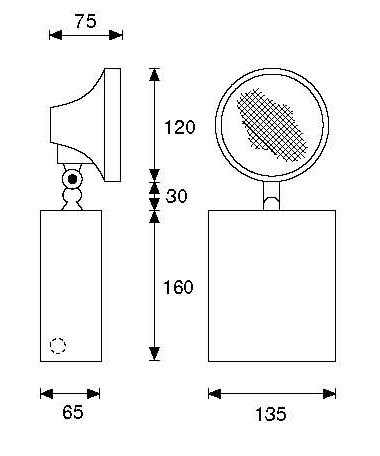

Dimension

135mm(L) x 95mm(W) x 310mm(H)

Packing

One unit per carton

Carton / Dimension

Double wall corrugated / 390mm(L) x 100mm(W) x 180mm(H)

Compliance

SS563-1:2010, SS563-2:2010/A1:2013, SSIEC60598-2-22:2016, SSIEC60598:Part 1:2016

Warranty

1 Year
